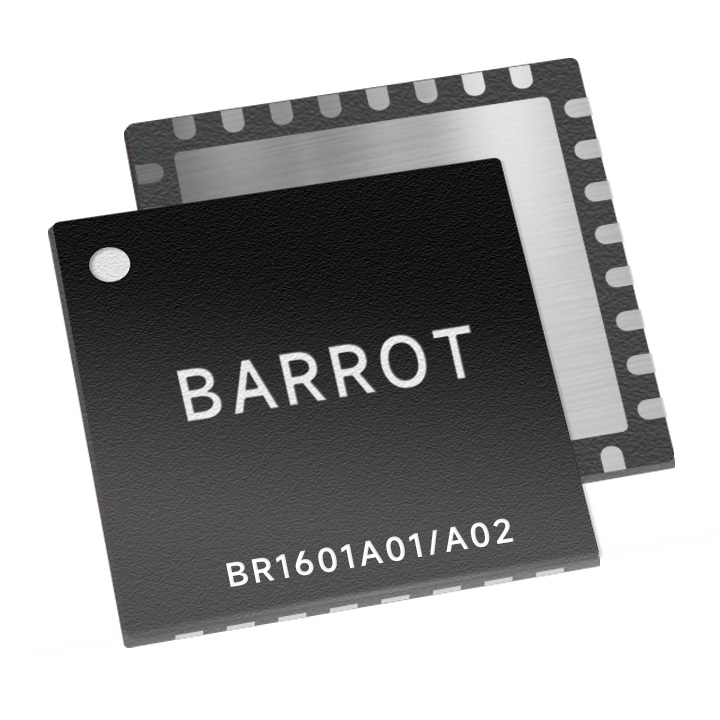

BR1601A01/A02
BR1601A01/A02是一款满足主从设备及多连接应用的SoC。它支持低功耗蓝牙、蓝牙Mesh、AOA定位、Findmy协议和2.4 GHz专有协议。。它通过精密的片上自适应电源管理系统，实现了更低的功耗管理。它是QFN32封装，有三路UART，1路I2S，1路I2C，2路SPI，3路PWM和21路GPIOs。它支持主从一体功能，同时四个连接。
|
Bluetooth Version |
Bluetooth v5.4 Low Energy + 2.4G Proprietary |
|
Package |
QFN32, 4x4 |
|
Operating Temperature |
-40°C to +125°C |
|
Profiles |
ATT, GATT, HOGP, Mesh, AOA, Findmy |
|
Bluetooth Transfer Rate |
1Mbps, 2Mbps, 125kbps, 500kbps |
|
MCU |
32bit RISC/64MHz |
|
SRAM |
48KB |
|
Flash |
256KB(A01) 512KB(A02) |
|
Rich Interface |
SPI(2),I2C(1), I2S(1), UART(2 x USART+ 1 x LPUART), PWM(3 x 4 channels), GPIOs(21) |
|
Supply Voltage |
1.8V~3.6V |
|
Power Consumption |
RX: 3.8mA@3.3V TX: 4.2mA @0dBm,3.3V ADV: 13μA@1s advertising interval Deep sleep(48KB RAM keep): 1.4μA |
|
Tx Power |
-20 to +6dBm |
|
Rx Sensitivity |
-96dBm@1Mbps, -93dBm@2Mbps |
|
Security |
AES-128 |
|
IR Transmitter |
YES |
